Model
1GEN–4–219 E (Machine with one Generator with four electrodes)
Function and uses
This machine has been designed and manufactured for:
The treatment and purification of water.
Physical description

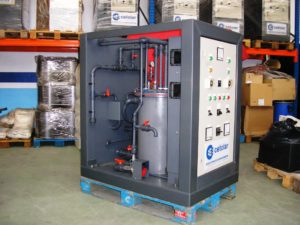

“In situ” chlorine-ozone production plant for the treatment of water using electrolysis of common salt in selective membrane generators-reactors. A pressure pump and venturi-jet injects the chlorine-ozone into the tank of water to be treated.
Technical specifications
- Flow of water to be treated: 500-1000 m3/day.
- CHLORINE production in 24 h: 2.880 kg.
- Requirements:
- Water input: 2000 litres at pressure of 5-6 kg.
- Electrical connection: 3 kW 220V Single phase.
- Structure: PVC.
- Patented electrolysis system.
- Equipped with salt tank to supply the generators-reactors.
- Pressure gauge for the measurement of the pump pressure.
- Machine dimensions (height*width*depth): 1300 mm*800 mm*1200 mm.
- Salt tank required (height*diameter): 1200 mm*500 mm.
